รายละเอียดสินค้า:
|
| ผู้ผลิตชิปเซ็ต: | Nvidia | ขนาดบรรจุภัณฑ์: | 20.00ซม.* 20.00ซม.* 10.00ซม. |
|---|---|---|---|
| ระยะเวลาของแบตเตอรี่: | > 5 ชั่วโมง | สถานะผลิตภัณฑ์: | สต็อค |
| แรงดันไฟฟ้า: | 24-28V | ปัจจุบัน: | 3.2A@28V |
| ภายในโมดูล: | โมดูลที่ออกแบบมาเป็นพิเศษสำหรับ FPV | สไตล์: | สี่เหลี่ยมผืนผ้า |
| เน้น: | ship mounted anti drone camera,multi-sensor counter drone system,performance anti drone camera system |
||
l Long range 24-hours monitoring.
l Delicate and smooth images．
l 360 degree of Omni-directional Pan-Tilt
l Higher sensitivity
l Effective in all environments
l Lightweight design: weight ≤ 18kg
In conclusion, the Anti Drone System is a sophisticated security solution that combines cutting-edge technology with robust design to deliver superior anti-UAV capabilities. With its advanced features and comprehensive coverage, this system provides effective protection against unauthorized drone activities, making it an essential asset for safeguarding critical assets and ensuring public safety.

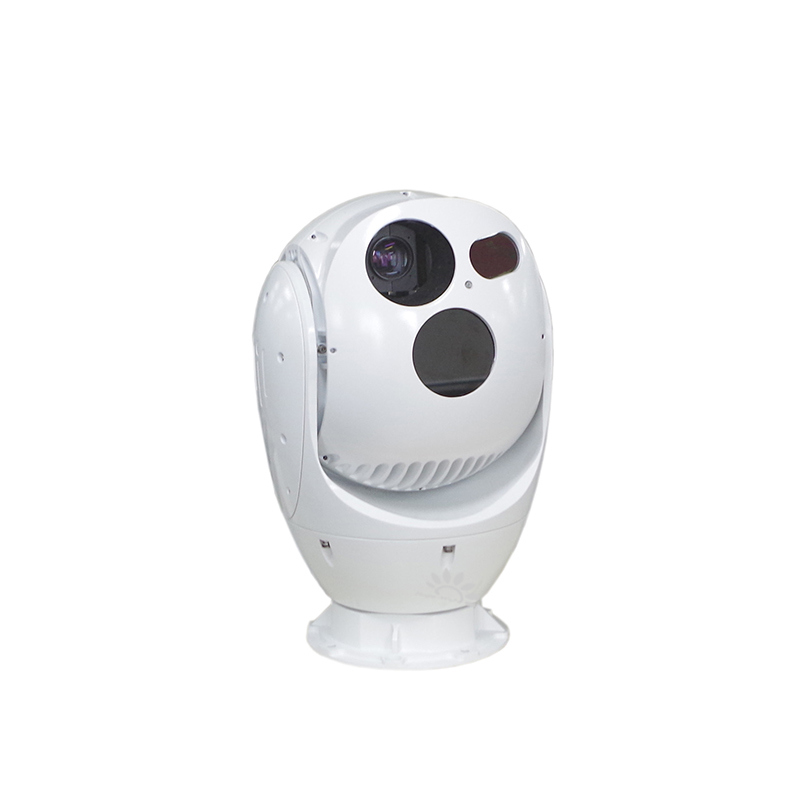

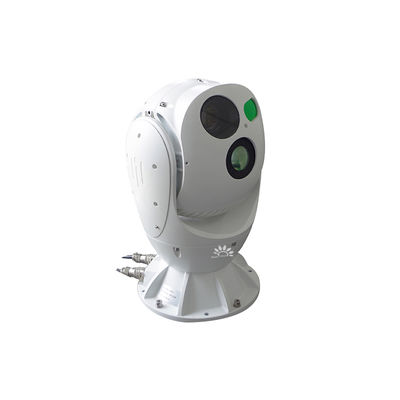

| Model | HP-ZS20GIS-TVC6307C-2132-LRF3K |
| Rotation range |
1. Pan: N × 360 ° continuous rotation 2. Tilt: -45 ° ～ + 90 ° 3. Limit: The pitch has a soft limit function, the program can be set |
| Spinning speed |
1. Horizontal speed: 0.1 ° ～ 80 ° / s 2. Pitching speed: 0.1 ° ～ 80 ° / s 3. Acceleration: horizontal 120 ° / s2, pitch 120 ° / s2 4. Drive mode: direct drive with vigorous torque rare earth permanent magnet synchronous motor, high-speed start-stop, smooth tracking with radar linkage |
| Positioning accuracy | Positioning accuracy: up to 0.02 °, high-frequency fine-tuning pulse precision motor drive, digital angle sensor servo |
| Turntable zero position | 1.Zero setting: support the setting of pan and pitch zero |
| Stability accuracy | 2mrad (RMS), two-axis gyro stable |
| Cruise scan |
1. Preset position: no less than 255 2. Path scan: support preset point cruise, line scan, scan speed can be set 3. Watch function: support watch preset, line scan and cruise |
| Data return |
1. Lens servo: support lens field of view, magnification, ZOOM / FOCUS value query, return, positioning function 2. Turntable angle: support real-time / query return and positioning functions of horizontal and pitch angles |
| Tracking mode |
1. Support manual control tracking 2. Support radar linkage automatic tracking 3. Support front-end module automatic tracking (optional) 4. Support automatic tracking of back-end software |
| Enhancement |
1. Motor protection: turntable blocking protection, high reliability 2. Fault detection: support power-on self-check, status query and fault code feedback 3. Upgrade and maintenance: remote restart, remote upgrade function, convenient system maintenance |
| Electrical Interface |
1. Network interface: 1 channel 10M / 100M adaptive Ethernet port (including thermal image + high-definition visible light + RS422 / 485 control) 2. Power source: 1 way DC24V 3. Physical interface: military-grade aviation waterproof plug, protection grade IP67 |
| Protocol |
1. Network protocol: support TCP / IP, UDP, IPv4 / v6, HTTP, RTP, RTSP; support Onvif, GB28181 network video protocol 2. PTZ control protocol: Pelco-D industry standard and other multi-protocols, baud rate 2400, 4800, 9600, 19200 optional, customizable private protocol |
| Environmental index |
1. Working temperature: -25 ℃ ～ + 60 ℃ 2. Storage temperature: -30 ℃ ～ + 70 ℃ 3. Humidity: <95% RH 4. Anti-lightning surge: power supply 4000V, communication video signal 2000V 5. Anti-salt spray: PH value 6.5 ~ 7.2, continuous spraying for 96 hours, can still work normally 6. Vibration resistance: meets GJB150A.16 shipboard environmental requirements 7. Protection level: IP67 |
| Machine power supply |
1. Power supply: equipped with ultra-wide input power adapter, AC90V ～ 305V to DC24V 2. Power consumption: The maximum power consumption of the turntable ≤250W, the stable power consumption ≤50W |
| Volume and weight |
1. Dimension:Ф280mm×430mm 2. Weight:≤18kg |
| Cameras | |
| Visible Camera |
1. Detector: 1/3 "low illumination CMOS 2. Resolution: 1920 × 1080 (2 million pixels) 3. Illumination: color 0.002 Lux ＠ (F1.2, AGC ON), black and white 0.0002Lux ＠ (F1.2, AGC ON) 4. Lens focal length: 8 ～320mm continuous zoom 5. Action distance: Under the conditions of atmospheric visibility greater than 10km, air humidity less than 50%, and background imperviousness, the action distance to small ships or islands and reefs can reach 8km. 6. Lens control: electric zoom, manual / auto focus 7. Interface and video format: IP network output, H.265 / H.264 |
| Uncooled Thermal Camera |
1. Detector: The fifth generation of VOx uncooled detector 2. Spectral range: 8μm ～ 12μm 3. Resolution: 640 × 512 4. Lens focal length: 25 ～ 75mm, 8X electronic zoom, optical-electronic fusion relay zoom 5. Sensitivity: NETD is better than 40mk; 6. Focus control: electric zoom, manual / auto focus 7. Strong light protection: anti-sun burn function 8. Ranging ruler: adaptive optical zoom proportional zoom 9. Life index: recording function (cumulative working time, shutter times, limit temperature, environment 10. temperature, core device temperature), can be viewed in real time through the web |
| Laser Ranging |
1. Wavelength: 1570nm 2. Measuring range: 100 ～ 3000m 3. Ranging accuracy: ± 3m 4. Repetition frequency: 0.2Hz 5. Control: RS422 |
| Recommended configuration of monitoring workstation | |
|
Host configuration (Recommended only, provided by user) |
CPU: 6 cores (i7 8700 and above) Memory: 16GB or more Hard Disk: 1TB SATA Display: resolution 1920 * 1080 Network: LAN or 100M Ethernet System: Windows 7 or Windows 10 Database: MySQL 5.1 and above Other: Windows SDK, MFC bottom support library Power supply; keyboard, mouse, etc. |
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
Our Anti Drone System product comes with comprehensive Product Technical Support and Services to ensure optimal performance and customer satisfaction. Our dedicated team of experts is available to assist with installation, troubleshooting, and maintenance of the system. Additionally, we offer training programs to educate users on the proper use and features of the product. Our goal is to provide reliable support and services to meet the needs of our customers and maximize the effectiveness of the Anti Drone System.
Q: What is the brand name of this Anti Drone System?
A: The brand name of this Anti Drone System is Hope-Wish.
Q: What is the model number of this Anti Drone System?
A: The model number of this Anti Drone System is HP-.
Q: Where is this Anti Drone System manufactured?
A: This Anti Drone System is manufactured in China.
Q: Is this Anti Drone System effective in detecting and neutralizing unauthorized drones?
A: Yes, this Anti Drone System is designed to effectively detect and neutralize unauthorized drones.
Q: Can this Anti Drone System be used in both indoor and outdoor settings?
A: Yes, this Anti Drone System is suitable for use in both indoor and outdoor settings.
